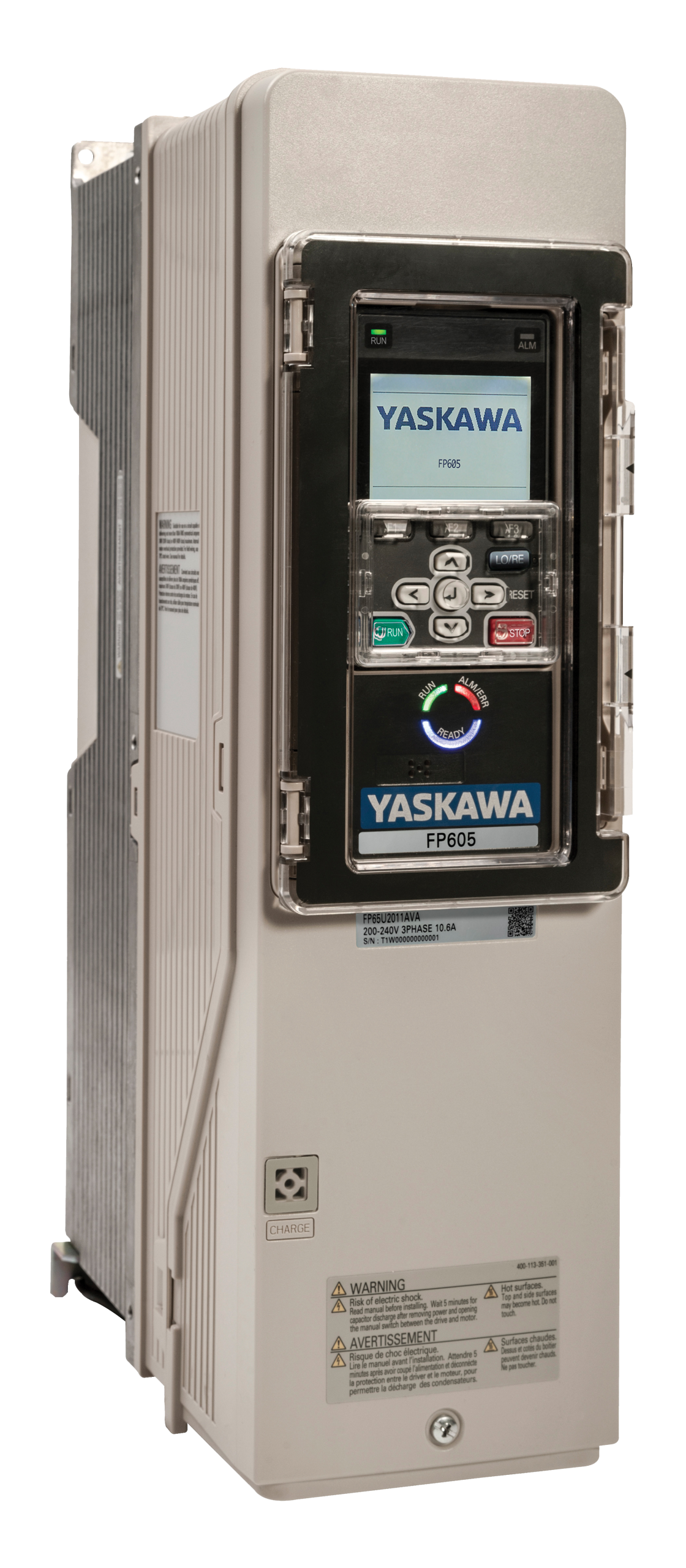

FP605 Features
FP605 – Industrial Fan & Pump Drive – Video
Drives for Every Environment
- IP20 / UL Type 1
- IP55 / UL Type 12
- IP55 / Type 12 with Switch
- IP20 / Protected Chassis
- IP55 / UL Type 12 Backside
- Seismic certified
Flexible Solution
- -10°C to +60°C ambient
- Side-by-side mounting
- UL Type 1 End cap kits for IP20/Protected Chassis drives
- External heatsink mounting (UL Type 1 and UL Type 12)
- Compatible with all major network communication protocols
Sustainable
- 10-year maintenance-free operation
- Compliance with global certifications and standards
- Built-in (5% split or 3% positive bus DC link choke) line impedance for harmonic reduction
- Embedded STO functional safety maximizes production uptime
- Conformal coating for circuit board protection
Quick and Easy Set-Up
- Simple steps for efficient commissioning
- Convenient programming without main power
- Operates induction, permanent magnet, and synchronous reluctance motors
- DriveWizard® Mobile app for drive management on smart mobile devices
Simple Operation
- High visibility status ring
- 32-character keypad with LCD display and tactile buttons
- Compatible with all major network communication protocols
Advanced Pump Control
- Fast and easy pump setup
- Easy-to-understand pump terminology
- Application presets for faster commissioning
- Advanced pump protection features
- Contactor multiplexing for pump systems
| Input Voltage |
Drive Model # |
Normal Duty Output | Physical Dimensions (in.) | Weight (lbs.) |
|||
|---|---|---|---|---|---|---|---|
| HP | Amps | H | W | D | |||
| 200-240V 3-Phase | FP65U2011AFA | 3 | 10.6 | 14.1 | 4.9 | 8.6 | 13.2 |
| FP65U2017AFA | 5 | 16.7 | 14.1 | 4.9 | 8.6 | 13.2 | |
| FP65U2024AFA | 7.5 | 24.2 | 17.6 | 4.9 | 9.2 | 16.5 | |
| FP65U2031AFA | 10 | 30.8 | 17.6 | 4.9 | 9.2 | 17.6 | |
| FP65U2046AFA | 15 | 46.2 | 20.1 | 7.9 | 9.3 | 30.9 | |
| FP65U2059AFA | 20 | 59.4 | 20.1 | 7.9 | 9.3 | 33.1 | |
| FP65U2075AFA | 25 | 74.8 | 21.3 | 10 | 10.4 | 55.1 | |
| FP65U2088AFA | 30 | 88 | 21.3 | 10 | 10.4 | 55.1 | |
| FP65U2114AFA | 40 | 114 | 21.3 | 10 | 10.4 | 61.7 | |
| FP65U2143AFA | 50 | 143 | 30.5 | 12.3 | 15.7 | 156.5 | |
| FP65U2169AFA | 60 | 169 | 30.5 | 12.3 | 15.7 | 163.1 | |
| FP65U2211ABA | 75 | 211 | 27.6 | 12.3 | 16.5 | 138.9 | |
| FP65U2273ABA | 100 | 273 | 27.6 | 12.3 | 16.5 | 145.5 | |
| FP65U2343ABA | 125 | 343 | 31.5 | 17.3 | 18.6 | 240.3 | |
| FP65U2396ABA | 150 | 396 | 31.5 | 17.3 | 18.6 | 249.1 | |
| 380-480V 3-Phase | FP65U4005AFA | 3 | 4.8 | 14.1 | 4.9 | 8.6 | 13.2 |
| FP65U4008AFA | 5 | 7.6 | 14.1 | 4.9 | 8.6 | 15.4 | |
| FP65U4011AFA | 7.5 | 11 | 14.1 | 4.9 | 8.6 | 14.3 | |
| FP65U4014AFA | 10 | 14 | 14.1 | 4.9 | 8.6 | 14.3 | |
| FP65U4021AFA | 15 | 21 | 17.6 | 4.9 | 9.2 | 17.6 | |
| FP65U4027AFA | 20 | 27 | 17.6 | 4.9 | 9.2 | 19.8 | |
| FP65U4034AFA | 25 | 34 | 17.6 | 4.9 | 9.2 | 22 | |
| FP65U4040AFA | 30 | 40 | 20.1 | 7.9 | 9.3 | 33.1 | |
| FP65U4052AFA | 40 | 52 | 20.1 | 7.9 | 9.3 | 37.5 | |
| FP65U4065AFA | 50 | 65 | 20.1 | 7.9 | 9.3 | 41.9 | |
| FP65U4077AFA | 60 | 77 | 21.3 | 10 | 10.4 | 61.7 | |
| FP65U4096AFA | 75 | 96 | 21.3 | 10 | 10.4 | 66.1 | |
| FP65U4124AFA | 100 | 124 | 21.3 | 10 | 10.4 | 70.5 | |
| FP65U4156AFA | 125 | 156 | 30.5 | 12.3 | 15.7 | 167.6 | |
| FP65U4180ABA | 150 | 180 | 27.6 | 12.3 | 16.5 | 143.3 | |
| FP65U4240ABA | 200 | 240 | 27.6 | 12.3 | 16.5 | 147.7 | |
| FP65U4302ABA | 250 | 302 | 27.6 | 12.3 | 16.5 | 154.3 | |
| FP65U4361ABA | 300 | 361 | 31.5 | 17.3 | 18.6 | 253.5 | |
